What Do All of the Mevo Ring Lights Mean?

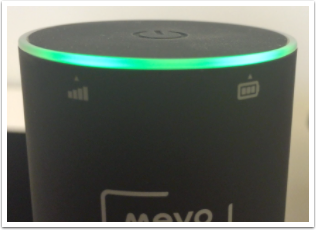

The Mevo's LED ring at the top of the camera can give you valuable information about what is happening with your Mevo.

You have the option of changing the lights on your Mevo LED ring.

Power On for the First Time

When you press and hold the power button for two seconds, the white circle light will pop up, and then start spinning as it initializes.

Once it has created its own Hotspot, you will see a pulsing blue light over the connectivity icon on the back to the camera. You will see solid green over the battery if it is above 25% charged.

Connecting To Your App Via Hotspot

Your Mevo will continue pulsing blue over the connectivity icon while you set up your connection to the app.

Once you tap Connect on your app, the blue light will spin around the top of the camera, then turn solid blue at the front.

This means that your camera is now connected via Hotspot to your app, and is ready to stream via your phone's 4G/LTE data plan.

Connecting To Your App Via Wi-Fi

If you turn off your Hotspot in the app so that you can stream over your Wi-Fi network, the camera ring will blink blue, then turn solid red over the connectivity icon.

Once you have connected to your Wi-Fi network the light over the connectivity icon will turn solid green.

Once you connect your mobile device to the same Wi-Fi network, the Mevo ring will spin blue while it connects to your app, then change to solid blue at the front of the camera once it is connected and ready to use.

Streaming & Recording

Once you tap the red button to record or start streaming, the ring light will spin red while the stream and/or recording starts.

Once the recording or stream has started, the light will turn solid red and stay that way while you are live.

When you stop your stream and / or recording, the red light will blink as it finishes. Once it has completely stopped, it will return to the solid blue light at the front of the camera, indicating a ready state.

Live Editing

The red light will move to wherever the app is focused in live editing. If your subject to stage-right is highlighted, then the left part of the front ring will go red to show that subject they are live.

Disconnection

If you lose connection to your network or between your mobile device and the Mevo, you will see a blinking blue light, followed by a solid red light over the connectivity icon. If this happens, check your local network connection and try connecting again.

Powering Off Mevo

When you press the power button for two seconds, or choose "Shutdown Mevo" in your menu, the ring will turn completely white, then disappear in a clockwise motion. This is followed by several blinks as the camera shuts itself down. Once it is completely shut down, the light will go off completely.
