Supported External Audio Sources & Adapters

Our team has tested a variety of adapters, extenders, and mixers to use as audio sources with Mevo via your iPhone or Mevo Boost . These adapters can be either via the lightning port or the headphone jack in the iPhone.

Listed below are products our team has tested and determined to be compatible with Mevo and the Mevo app. Please note that products that are not listed here have not been tested and we make no guarantees that any audio devices outside of this list, such as wireless microphone or Bluetooth devices, will work with Mevo.

 3.5mm TRRS plug - Powered Input Devices (Mono)

3.5mm TRRS plug - Passive Input Devices (not self-powered) (Mono)



Lightning plug (Stereo)

Extensions (Mono)

3.5mm Microphones (Mono)

USB Audio Devices (Stereo - Compatible with Mevo Boost)

**Note: This product may not be detected by Mevo if it plugged into the Boost after to powering on the Mevo. It is always best practice to plug in your audio device before powering on the Mevo.

Products listed below have been tested and determined not compatible with Mevo.

  • Panasonic RP-BTS30-W Wings Wireless Bluetooth Sport Clips with Mic & Controller
  • Wiretap Headphone/Microphone Splitter
  • Headset Buddy: External Mic
  • Headset Buddy: Line-level Audio Adapter
  • Rode SC4 Microphone Cable
  • Rode SC7 TRS to TRRS Patch Cable
  • MAXTOMARS N8 4 Stereo / 8 Mono Channel, Mini Mixer 8-Channel 1/4"
  • Saramonic SR-AX100 2 Channel 3.5mm Audio Adapter
  • Saramonic SR-AX101 2 Channel XLR Audio Adapter

A note about the Belkin Lightning Splitter:

This lightning splitter has been tested with the Mevo app and we have found that it works only with certain workflows.



It does work with the TRRS-to-lightning adapter that is included with iPhone 7. It also works with a lightning-to-USB adapter when using a USB audio interface.

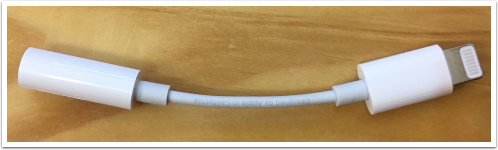

TRRS-to-Lightning adapter (included with iPhone 7 and iPhone 7 Plus)

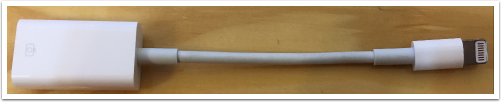

USB-to-lightning adapter

It does not work when directly connecting lightning audio sources and adapters.

What is a TRRS plug?

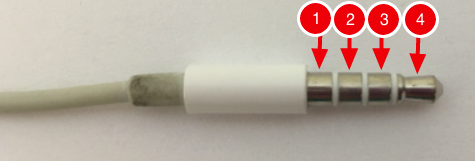

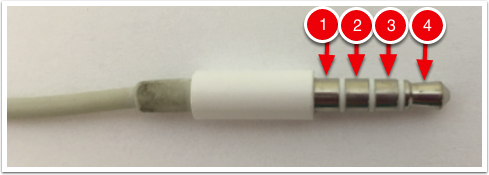

The key factor determining if your audio source is compatible with the iPhone headphone jack is the type of plug it has. It must exactly match the form factor seen in recent versions of the Apple earbuds with the built-in microphone, as pictured here:

The red arrows above are pointing to three chrome rings and a chrome tip separated by three much thinner rings. This is referred to as a TRRS plug (tip-ring-ring-sleeve). This is the correct type of audio input that iOS devices can accept.

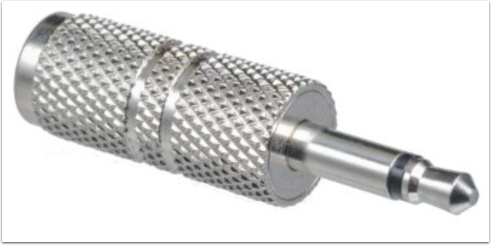

iOS devices cannot accept plugs that only have 2 or 3 chrome rings, such as those pictured below:

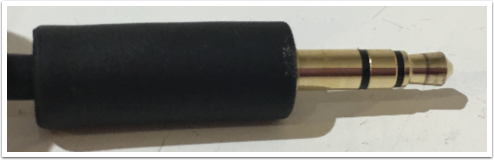

A TS (tip-sleeve) and TRS (tip-ring-sleeve) plug. These are not supported as audio inputs.

We are continually testing more products and will update this list as we find more compatible audio sources.
